Order of the root-Elements

All root-elements are arranged in a certain order. First in this order comes the highest root-element and then the root-elements contained in it, with their containing root-elements in the order they are defined in the respective root-elements. In diagram 1 an example of the order of the root elements is shown.

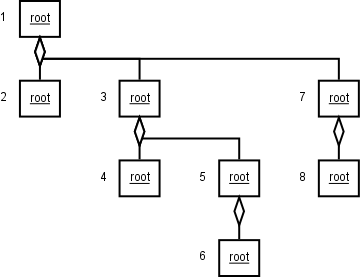

Figure 1: Example: Order of the root-Elements
Image order_root

For each Fib object all root-objects are visible, that stand after the Fib objects (in the root-elements) in which it is contained, and the root-objects in the database.

If an external object in a Fib object should be resolved, first the identifiers in the next root-element, in which the Fib object is contained, are searched, then the identifiers in the next higher root-element, and so on. For this only identifiers are checked, which are after the identifier for the root-object, in which the Fib object is contained. The main-Fib-object is befor all contained root-objects (with identifiers) of a root-element. In the end, the database objects are checked.

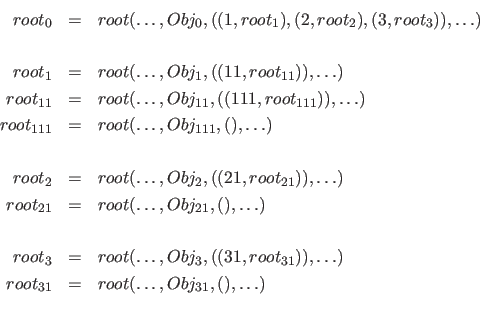

Example: The following root-element structure is given:

\begin{eqnarray*}
root_0&=&root( \ldots , Obj_0 , (( 1, root_1), ( 2, root_2), (...
...ldots )\\
root_{31}&=&root( \ldots , Obj_{31} , (), \ldots )\\
\end{eqnarray*}

The root-element $root_0$ is the top most root-element. The following list lists for some Fib objects, which identifiers and thus root-objects they can use in external objects or which root-elements can be resolved and are visible for them. (The Fib database is not considered here. Root-objects in the database would be visible for all Fib objects.) The identifier and the root-elements are specified in the order they are traversed in the search.
